ZEMIC B8D 1~5ton Stainless Steel Weighing Load Cell OIML Approved

সাক্ষ্যদান
ভাল মানের বেঞ্চ ঝাঁকনি আইশ বিক্রয়ের জন্য
ভাল মানের বেঞ্চ ঝাঁকনি আইশ বিক্রয়ের জন্য
তোমার দর্শন লগ করা অনলাইন চ্যাট এখন

ZEMIC B8D 1~5ton Stainless Steel Weighing Load Cell OIML Approved

চীন ZEMIC B8D 1~5ton Stainless Steel Weighing Load Cell OIML Approved সরবরাহকারী
ZEMIC B8D 1~5ton Stainless Steel Weighing Load Cell OIML Approved সরবরাহকারী ZEMIC B8D 1~5ton Stainless Steel Weighing Load Cell OIML Approved সরবরাহকারী ZEMIC B8D 1~5ton Stainless Steel Weighing Load Cell OIML Approved সরবরাহকারী

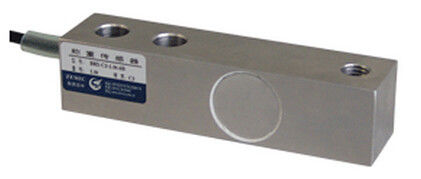

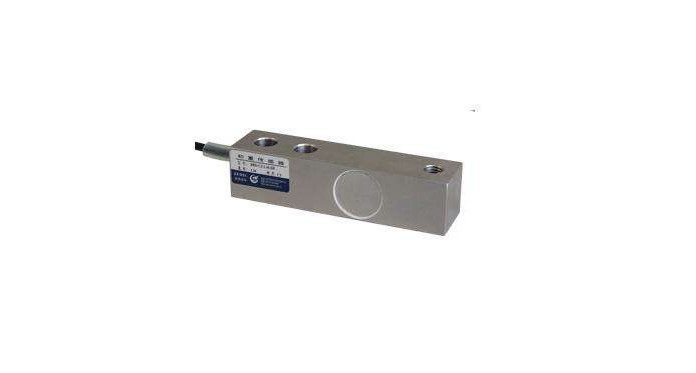

বড় ইমেজ :  ZEMIC B8D 1~5ton Stainless Steel Weighing Load Cell OIML Approved

পণ্যের বিবরণ:

Place of Origin: CHINA
পরিচিতিমুলক নাম: ZEMIC
সাক্ষ্যদান: OIML
Model Number: B8D

প্রদান:

Minimum Order Quantity: 10pcs
মূল্য: Negotiation
Packaging Details: Carton
Delivery Time: 15~25days
Supply Ability: 500pcs/m
Contact Now
বিস্তারিত পণ্যের বর্ণনা
আইটেম: স্টেইনলেস স্টিল লোড সেল ধারণক্ষমতা: 500 কেজি থেকে 5ton, 250lb থেকে 20KLB
আইপি গ্রেড: জলরোধী IP68 আউটপুট: অ্যানালগ সেন্সর
ব্যবহার: চাপ সেন্সর তত্ত্ব: প্রতিরোধ সেন্সর

OIML approved ZEMIC B8D 1~5ton stainless steel load cell for weighing scale

Specifications:



Capacity t 0.1/0.15/0.2/0.25/0.3/0.4/0.5/0.75/1/1.5/2/3/5/7.5/10
lb 250/500/750/1K/1.5K/2K/2.5K/2.5KLE/3K/4K/5K/5KSE/7.5K/10K/15K/20K
Accuracy   C2 C3 A5M B10M
Approval     OIML R60 C3
Maximum number of
verification intervals
n max 2000 3000 5000 10000
Minimum load cell
verification interval
Vmin Emax/5000 Emax/10000 Emax/15000 Emax/10000
Combined error (%FS) ≤± 0.030 ≤± 0.020 ≤± 0.026 ≤± 0.050
Creep (%FS/30min) ≤± 0.024 ≤± 0.016 ≤± 0.017 ≤± 0.040
Temperature effect
on sensitivity
(%FS/10℃) ≤± 0.017 ≤± 0.011 ≤± 0.013 ≤± 0.040
Temperature effect
on zero
(%FS/10℃) ≤± 0.023 ≤± 0.015 ≤± 0.014 ≤± 0.020
Output sensitivity (mv/v) 3.0±0.008
Input resistance () 350±3.5
Output resistance () 350±3.5
Insulation resistance () ≥ 5000(50VDC)
Zero balance (%FS) 1.0
Temperature,
compensated
(℃) -10~+40
Temperature,allowed (℃) -35~+65
Excitation,
Recommended
(V) 5~12(DC)
Excitation,Max (V) 18(DC)
Safe overload (%FS) 150
Ultimate overload (%FS) 300



Description:



Zemic Load Cell B8D 0.5t to 10t OIML Approval

1. B8D load cells are available in the capacities 250lb to 20Klb and 0.5t to 5t.

2. Stainless steel construction, potted by adhesive inside.oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.

3. Single shear beam, easy for installation, suitable for electronic truck scales, automobile testing facilities, hopper scales and other electronic weighing devices.

4. Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.

Important Features
1. Capacities: 250lb to 20Klb and 0.5t to 5t.
2. High accuracy.
3. Stainless steel construction.
4. Low profile.
5. With OIML approval.



Applications:

It is widely used in platform scale, truck scale and other electronice weighing devices.



Competitive Advantage:
1. High Quality:
We have strict quality control system, all of our products comply with international quality standards and are greatly in a variety of different markets throughout the world.

2. Outstanding Customer Service
We are a professional manufacturer and exporter committed to weighing equipments research and manufacture. We have good English speakers , will give every clients timely response.

3. Low MOQ & Fast Delivery:
Small order quantity and flexible payment terms, it can meet your promotional business very well.
Fast delivery, it can meet your urgent needs.
